dbarb3 Posted September 14 Share Posted September 14 Start out by saying I hate electrical problems. The mechanics of this bike are perfect but some of these niggles are frustrating. I have checked fuses and thats about the depth of what I know to do. Front and rears both are out. Link to comment Share on other sites More sharing options...
docc Posted September 15 Share Posted September 15 Good news is there is no relay in that circuit, so it's down to fuse, switch, and connectors. I have had some success spraying an contact cleaner like CRC Electronics Cleaner, followed by Caig DeOxit in beside the switch toggle and working it back and forth. Otherwise, the switch box is easy to open and apply the same clean/treat method. Certainly, the switch connector to the harness could attention, but let's start with the easy stuff . . . Link to comment Share on other sites More sharing options...
MotoKnee Posted September 15 Share Posted September 15 1 hour ago, docc said: Good news is there is no relay in that circuit, so it's down to fuse, switch, and connectors. I have had some success spraying an contact cleaner like CRC Electronics Cleaner, followed by Caig DeOxit in beside the switch toggle and working it back and forth. Otherwise, the switch box is easy to open and apply the same clean/treat method. Certainly, the switch connector to the harness could attention, but let's start with the easy stuff . . . And maybe give the flasher unit a look and a spritz of cleaner? 1 Link to comment Share on other sites More sharing options...
docc Posted September 15 Share Posted September 15 58 minutes ago, MotoKnee said: And maybe give the flasher unit a look and a spritz of cleaner? Wow, wouldn't that be quite something if a fresh flasher solved the issue? It is the little "tin can" under the seat @dbarb3 . . . Link to comment Share on other sites More sharing options...
gstallons Posted September 15 Share Posted September 15 IF the wiring diagram I am looking at is correct , F7 is the fuse , a 552 (w/o looking / IDK where it is on the bike) is the flasher , thru the switchgear , then to the left or right side lamps. Do the turn signal lamps light up or stay "off" ? Link to comment Share on other sites More sharing options...
dbarb3 Posted September 15 Author Share Posted September 15 Signals do nothing at all -- dead Where is flasher I didnt see it under seat its 02 Lemans Link to comment Share on other sites More sharing options...
gstallons Posted September 15 Share Posted September 15 (edited) It should be right there w/the fuses. It has an orange wire and a red/white wire on the connector . It has been so long I had to look at the switchgear on the red frame , then look under the seat of the black frame to find it ! Edited September 15 by gstallons 1 Link to comment Share on other sites More sharing options...
audiomick Posted September 15 Share Posted September 15 I think it might be tucked in under the bodywork next to the relays. Vague memories popping up... 1 Link to comment Share on other sites More sharing options...
LowRyter Posted September 15 Share Posted September 15 Relegated to riding my EV, I discovered the signals and taillights weren't working. I checked and cleaned the fuses and played with the relays, only before discovering the fuse was missing. Where did it go? Link to comment Share on other sites More sharing options...
dbarb3 Posted September 15 Author Share Posted September 15 I have looked pretty good under seat around fuses box, relay, tail section and if flasher looks similar to auto one I sure dont see it Link to comment Share on other sites More sharing options...
docc Posted September 15 Share Posted September 15 18 minutes ago, dbarb3 said: I have looked pretty good under seat around fuses box, relay, tail section and if flasher looks similar to auto one I sure dont see it Can you post an image under your seat? My 2000 was position between the left back corner of the battery and the fuse block. Later V11 may seen them nearer the right (relay) side, or even outboard of the subframe (between the subframe tubes and tail section bodywork. While they typically like like the common 'tin can" (about 30mm/ 1 1/4" diameter and height), it could also be a "box about the same size . . . Link to comment Share on other sites More sharing options...
audiomick Posted September 15 Share Posted September 15 Ok, these images will be appreciated. Down 5 flights of stairs, unpack the bike in the cold and drizzle, take the photos with the aid of a torch, back up the stairs. I'm expecting an elefant stamp here.... My 2002 V11 Le Mans. Here is a "close up". The blinker can is in the scruffy looking rubber boot behind the relays, tucked in under the bodywork. I don't know for sure that this is the original position, as it is just cable-tied onto the frame rail there. On the other hand, the cable harness would not allow it to have been very far from that position. It is just long enough to get there. And here is another picture from a bit further back to put it into perspective Hope that helps. 1 1 Link to comment Share on other sites More sharing options...

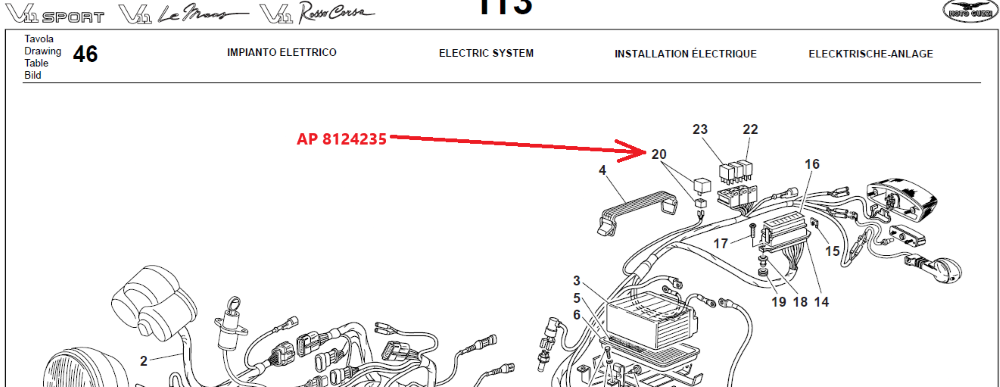

MotoKnee Posted September 15 Share Posted September 15 1 Link to comment Share on other sites More sharing options...

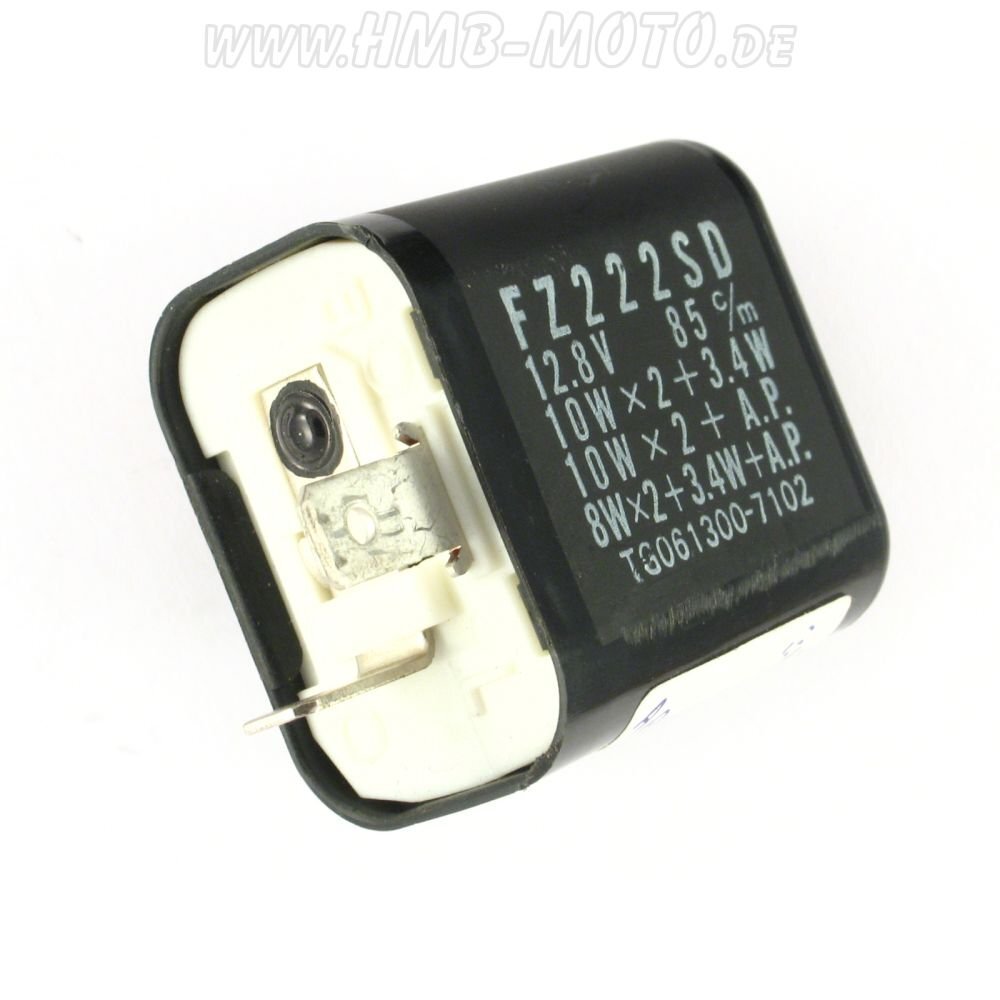

audiomick Posted September 16 Share Posted September 16 (edited) That would seem to be the circuit diagram for the models including and after 2003. Page 154 here: https://guzzitek.org/parts_list/gb/1100/V11LM_Nak_RC_Cat_2003_122002_PL.pdf The diagramme indicates a square blinker can. Mine is round, a "classic" blinker can, and seems to be more like the picture here on page 59 https://guzzitek.org/parts_list/gb/1100/V11LM_2002_062011_PL(GB).pdf or here on page 141 https://guzzitek.org/parts_list/gb/1100/V11LM_2002_072002_PL.pdf either way, as is indicated in both diagrammes, it must be somewhere near the relays. The cable harness doesn't allow it to be anywhere else, as far as I can tell. Edited September 16 by audiomick Link to comment Share on other sites More sharing options...
dbarb3 Posted September 16 Author Share Posted September 16 Thank you gentlemen back to the garage I go. Appreciate the help. 2 Link to comment Share on other sites More sharing options...
