bsanorton Posted March 25, 2021 Share Posted March 25, 2021 Received a luggage rack today. Looks like I'm missing something from the frame that it mounts to. Can someone advise? Link to comment Share on other sites More sharing options...
KINDOY2 Posted March 25, 2021 Share Posted March 25, 2021 I had one on my Scura when I bought it but removed it and honestly I cant remember how it was mounted but I know it was NOT like that.....I don't think your missing anything but the proper fastners..Hopefully some of the others who have mounted tis type of rack will chime in ... 1 Link to comment Share on other sites More sharing options...
KINDOY2 Posted March 25, 2021 Share Posted March 25, 2021 Just now, KINDOY2 said: I think you have the brackets backward and the two "raised" holes go one the backs of the pillion mounts....ANYONE? 1 Link to comment Share on other sites More sharing options...
footgoose Posted March 25, 2021 Share Posted March 25, 2021 yes reverse the brackets so the 2 reinforced mounting holes are forward. They attach to the muffler hanger frame mounting points. Install those first. You'll need longer bolts as I recall to get through everything. I had to remove the rear seat cowel to not damage it getting the bolts in/out. Once the brackets are on, attach rack. 2 1 Link to comment Share on other sites More sharing options...
bsanorton Posted March 25, 2021 Author Share Posted March 25, 2021 LOL, yes you are right Paul. Must have been bolted on that way for easier shipping. Anybody got a good picture or instructions of how it's attached to the inside rider peg brackets? Link to comment Share on other sites More sharing options...
bsanorton Posted March 25, 2021 Author Share Posted March 25, 2021 Thank you all! Link to comment Share on other sites More sharing options...
footgoose Posted March 25, 2021 Share Posted March 25, 2021 also.... trying to recall as it's been awhile since install/removal .... the brackets curve mount as a 'frown' as apposed to a smile. The raised bits on the bracket is a spacer and goes inside the frame mount for the muff hanger, onto the longer bolts you've installed. need lock nuts to secure brackets. 2 Link to comment Share on other sites More sharing options...
KINDOY2 Posted March 25, 2021 Share Posted March 25, 2021 22 minutes ago, footgoose said: yes reverse the brackets so the 2 reinforced mounting holes are forward. They attach to the muffler hanger frame mounting points. Install those first. You'll need longer bolts as I recall to get through everything. I had to remove the rear seat cowel to not damage it getting the bolts in/out. Once the brackets are on, attach rack. Ditto on removing the cowl to avoid scratching..they scratch easilyand that one has/had no scratches ( not that difficult to remove like 6 easy access bolts) 3 Link to comment Share on other sites More sharing options...

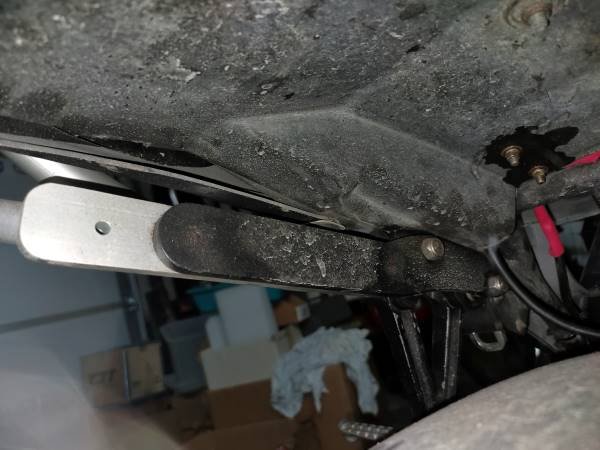

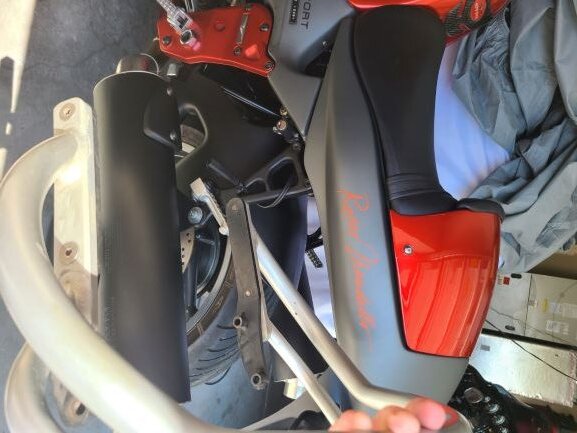

MartyNZ Posted March 26, 2021 Share Posted March 26, 2021 15 hours ago, bsanorton said: Received a luggage rack today. Looks like I'm missing something from the frame that it mounts to. Can someone advise? Here's some pictures of the mounts on my bike. You can see a bit of paint blistering where I ground some clearance on the mounts for something nearby. Excuse the grime. I've always wondered what Docc does to keep his bike looking so nice? Maybe he can share the secret 2 Link to comment Share on other sites More sharing options...
docc Posted March 26, 2021 Share Posted March 26, 2021 2 hours ago, MartyNZ said: Here's some pictures of the mounts on my bike. You can see a bit of paint blistering where I ground some clearance on the mounts for something nearby. Excuse the grime. I've always wondered what Docc does to keep his bike looking so nice? Maybe he can share the secret Oh, easy! You just need to get all those pesky extra parts out of the way to get the Q-Tips into the tight spots . . . 3 5 Link to comment Share on other sites More sharing options...
Tom in Virginia Posted April 1, 2021 Share Posted April 1, 2021 On 3/26/2021 at 7:54 AM, docc said: Oh, easy! You just need to get all those pesky extra parts out of the way to get the Q-Tips into the tight spots . . . I like that edged tray and support stand setup docc, just what I need to keep from loosing all those "roll away" parts. 2 Link to comment Share on other sites More sharing options...
al_roethlisberger Posted March 19, 2023 Share Posted March 19, 2023 Although I don't remember the specifications on this rack from when I had one many years ago, it is wise to check the maximum load as I recall it seemed to be pretty limited, probably due to the extreme cantilevered mounting. I think there was a decal on the rack itself noting the maximum weight. One would hate to bend, break, or scratch something if it collapsed under load, or lose your cargo. 1 Link to comment Share on other sites More sharing options...
PJPR01 Posted March 19, 2023 Share Posted March 19, 2023 3 kg is the recommendation on overall weight for this configuration. One other item I found useful was to get slightly longer screws to get more purchase on the mounting. Carrying a rear tail bag with a few essential goodies makes for a nice setup. 2 1 Link to comment Share on other sites More sharing options...
LowRyter Posted March 19, 2023 Share Posted March 19, 2023 Most people cram everything can into it. If it fits, it goes. Link to comment Share on other sites More sharing options...
